Volumetric dosing devices

Micro-dosing devices for powders, batches, master batches and free-flowing materials.

  • Suitable for micro injection molding
  • Shot-related (cyclic), microfine dosing
  • <0.01g per shot

Das Pulverdosiergerät.

In response to a shot signal from the injection molding machine, the powder additive (in most cases color) is metered into the free-running main component.

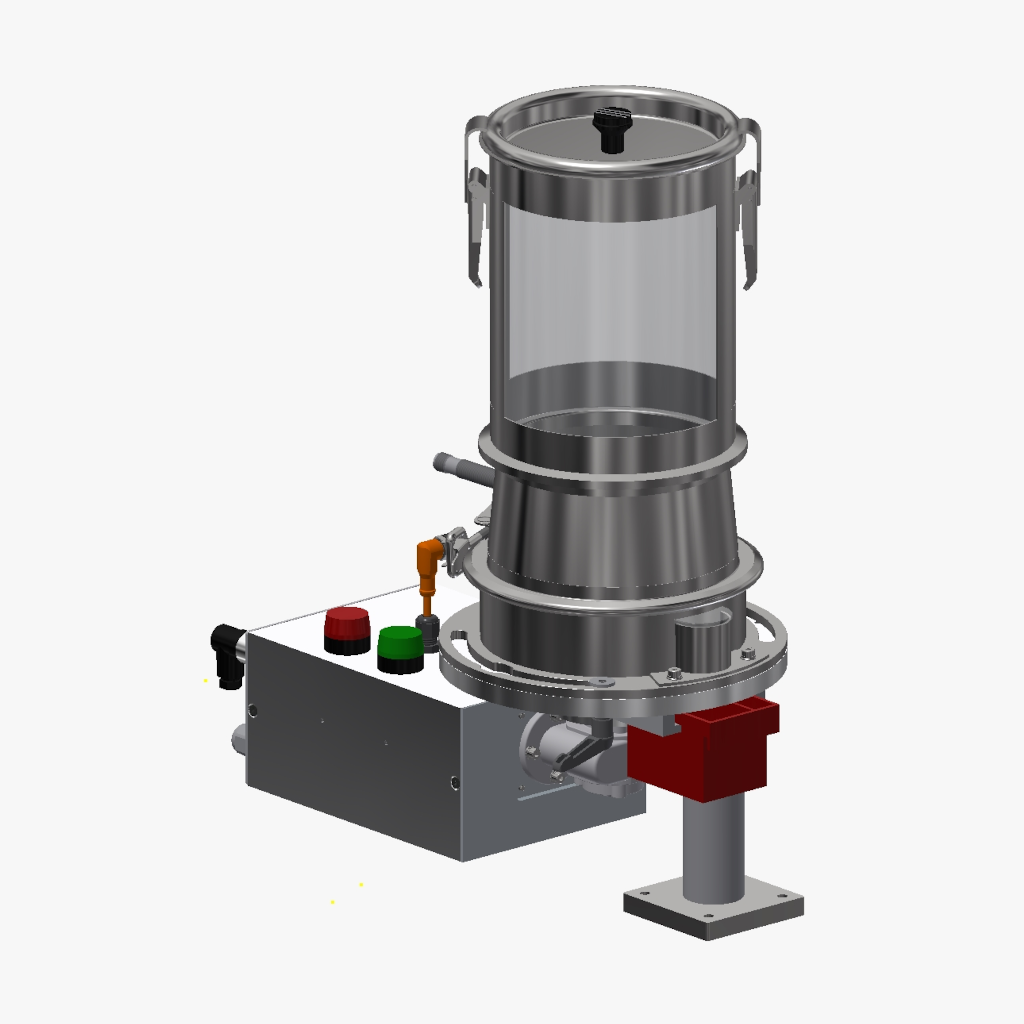

The WD Powder drum dosing device meters powder directly into the feed section of the injection molding machine. It is used to volumetrically dose color to a main material stream.

The device works according to the clock principle. The injection molding machine sends a signal per shot to the dosing device, which adds a preset amount of additive (for example, color).

Design: Stainless steel
Dosing: Metering disk
Batch size: max. 800g/h
Control system: 4,3" Touch Panel
Connection: 230V AC / 50-60 Hz
  • On request

  • Wide dosing range due to variable speed and drum geometry
  • Quick emptying of batch/additives station
  • Easy cleaning
  • Low material storage
  • Continuous discharge – no pulsation
  • Shot-related dosing
  • Main components gravity feed
  • Recipe memory
  • Logbook export via USB
  • Meter
  • User and access rights management
  • 4,3" Touch Panel
  • Detachable controller

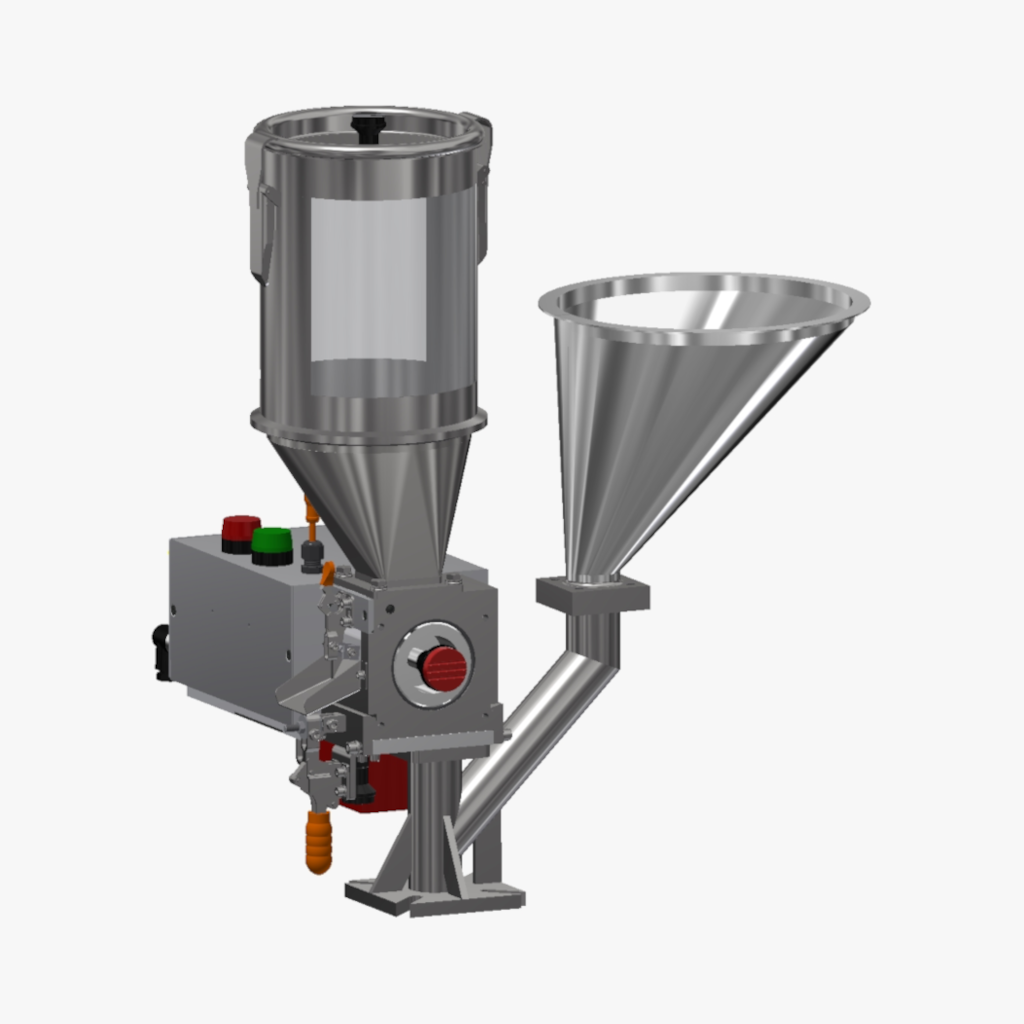

Drum dosing device for cyclic dosing of one component into the material flow.

Due to the special geometry of the interchangeable dosing drums and adjustment of the rotational speed, it is possible to dose minute quantities (<0,01g*). Due to the high precision and repeat accuracy, the drum dosing system is perfectly suited to shot-based dosing in micro injection molding/injection molding as well as continuous dosing on extrusion systems. Using a range of drum geometries provides a wide dosing range (approx. <20 g/h to >30 kg/h*).

* Per shot, depending on grain size and bulk density

Desingn: Aluminium, stainless steel
Dosing: max. 30kg/h
Power unit: Step motor
Control system: 4,3" Touch Panel
Connection: 230V AC / 50-60 Hz
  • Metring drum made of POM or stainless steel (width drum runner: 6, 12, 25, 45mm)
  • External control module for pneumatic conveying systems

  • Wide dosing range due to variable speed and drum geometry
  • Quick emptying of batch/additives station
  • Easy cleaning
  • Low material storage
  • Continuous discharge – no pulsation
  • Recipe memory
  • Logbook export via USB
  • Meter
  • User and access rights management
  • 4,3" Touch Panel
  • Detachable controller

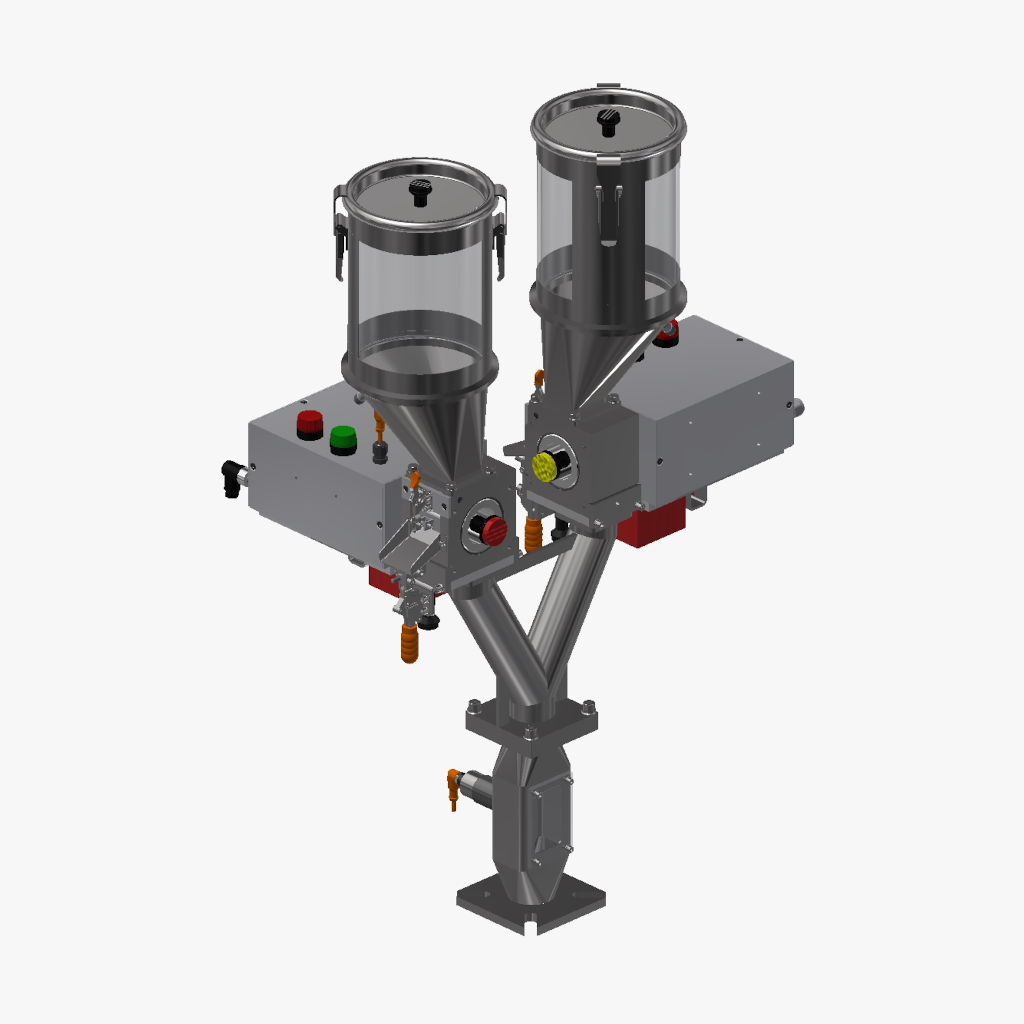

Drum dosing device for simultaneous dosing of 2 components.

Due to the special geometry of the interchangeable dosing drums and adjustment of the rotational speed, it is possible to dose minute quantities (<0,01g*). Due to the high precision and repeat accuracy, the drum dosing system is perfectly suited to shot-based dosing in micro injection molding/injection molding as well as continuous dosing on extrusion systems. Using a range of drum geometries provides a wide dosing range (approx. <20 g/h to >30 kg/h*).

* Per shot, depending on grain size and bulk density

Desingn: Aluminium, stainless steel
Dosing: max. 30kg/h
Power unit: Step motor
Control system: 4,3" Touch Panel
Connection: 230V AC / 50-60 Hz
  • Metring drum made of POM or stainless steel (width drum runner: 6, 12, 25, 45mm)
  • External control module for pneumatic conveying systems
